• Dimensions
  (unfolded, excl. propellers)

470×585×215 mm (L×W×H)

• Dimensions (folded)

365×215×195 mm (L×W×H)

• Diagonal Wheelbase

668 mm

• Weight (incl. two batteries)

3770 ± 10 g

• Max Takeoff Weight

4069 g

• Max Takeoff Weight for C2 Certification in EU

3998 g

• Operation Frequency[1]

2.4000-2.4835 GHz; 5.725-5.850 GHz

• Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

• Hovering Accuracy
  (windless or breezy)

Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

• RTK Positioning Accuracy
  (fixed RTK enabled)

1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)

• Max Angular Velocity

Pitch: 150°/sec.; Yaw: 100°/sec.

• Max Pitch Angle

35° (N-mode and Forward Vision System enabled: 25°)

• Max Ascent/Descent Speed

6 m/s, 5 m/s

• Max Tilt Descent Speed

7 m/s

• Max Horizontal Speed

23 m/s

• Max Service Ceiling Above Sea Level (without other payload)

5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)

• Max Wind Resistance

12 m/s

• Max Hover Time [2]

36 min

• Max Flight Time[2]

41 min

• Motor Model

3511

• Propeller Model

1671
1676 High Altitude (not included)

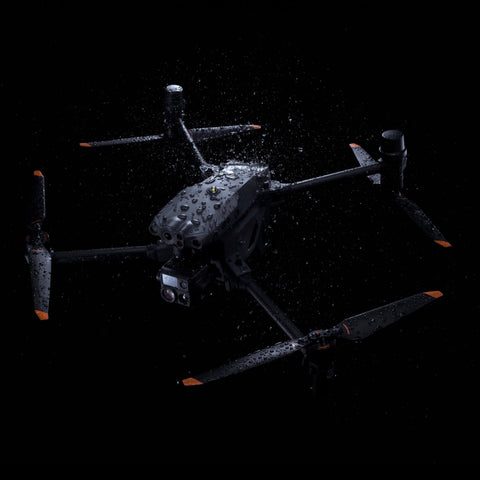

• Ingress Protection Rating[3]

IP55

• GNSS

GPS+Galileo+BeiDou+GLONASS
(GLONASS is supported only when RTK module is enabled)

• Operating Temperature

-20° to 50° C (-4° to 122° F)

• Angular Vibration Range : ±0.01°
• Controllable Range Pan: ±90° Tilt: -120° to +45°

• Mechanical Range:

Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°

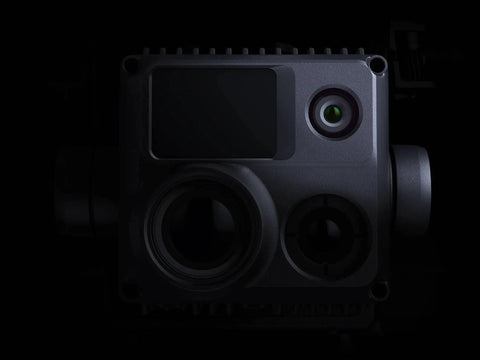

• Sensor

1/2" CMOS, Effective pixels: 48M

• Lens

Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞

• Exposure Compensation

±3 ev (using 1/3 ev as step length)

• Electronic Shutter Speed

Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 s
M Mode:
Photo: 1/8000-8 s
Video: 1/8000 -1/30 s

• ISO Range

100-25600

• Max. Video Resolution

3840×2160

• Max Photo Size

8000×6000

Wide Camera

• Sensor

1/2" CMOS, Effective pixels: 12M

• Lens

DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

• Exposure Compensation

±3 ev (using 1/3 ev as step length)

• Electronic Shutter Speed

Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 s

M Mode:
Photo: 1/8000-8 s
Video: 1/8000-1/30 s

• ISO Range

100-25600

• Max. Video Resolution

3840×2160

• Photo Size

4000×3000

The thermal camera is only available on the DJI M30T model, these do not apply to the M30 model.

• Thermal Imager

Uncooled VOx Microbolometer

• Lens

DFOV: 61°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞

• Noise Equivalent Temperature Difference (NETD)

≤50 mK@F1.0

• Infrared Temperature Measurement Accuracy[4]

±2°C or ±2% (using the larger value)

• Video Resolution

Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512

• Photo Size

Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512

• Pixel Pitch

12 um

• Temperature Measurement Method

Spot Meter, Area Measurement

• Temperature Measurement Range

High Gain Mode: -20° to 150° C (-4° to 302° F)
Low Gain Mode: 0° to 500° C (32° to 932° F)

• Temperature Alert

Supported

• Palette

White Hot/Black Hot/Tint/Iron Red/Hot
Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

• Resolution

1920×1080

• DFOV

161°

• Frame Rate

30 fps

• Screen

7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

• Internal Battery

Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2

• External Battery(WB37 Intelligent Battery)

Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2

• Operating Time[5]

Internal Battery: Approx. 3 hours 18 min
Internal Battery + External Battery: Approx. 6 hours

• Ingress Protection Rating[3]

IP54

• GNSS

GPS+Galileo+BeiDou

• Operating Temperature

-20° to 50° C (-4° to 122° F)

• Operating Frequency[1]

2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance (unobstructed, free of interference)

15 km (FCC); 8 km (CE/SRRC/MIC)

• Max Transmission Distance (with interference)

Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)

• Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
